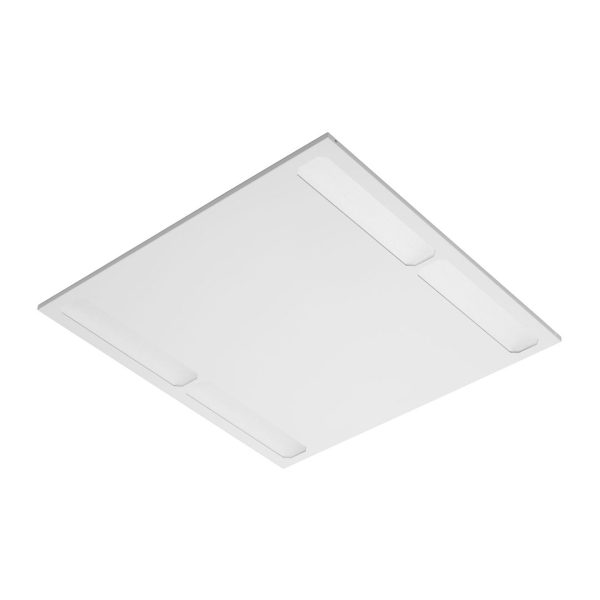

Freyn II Recessed

Freyn II Recessed

SKU: N/A Categories:, , , Tag:

Additional information

Mounting

,

Size

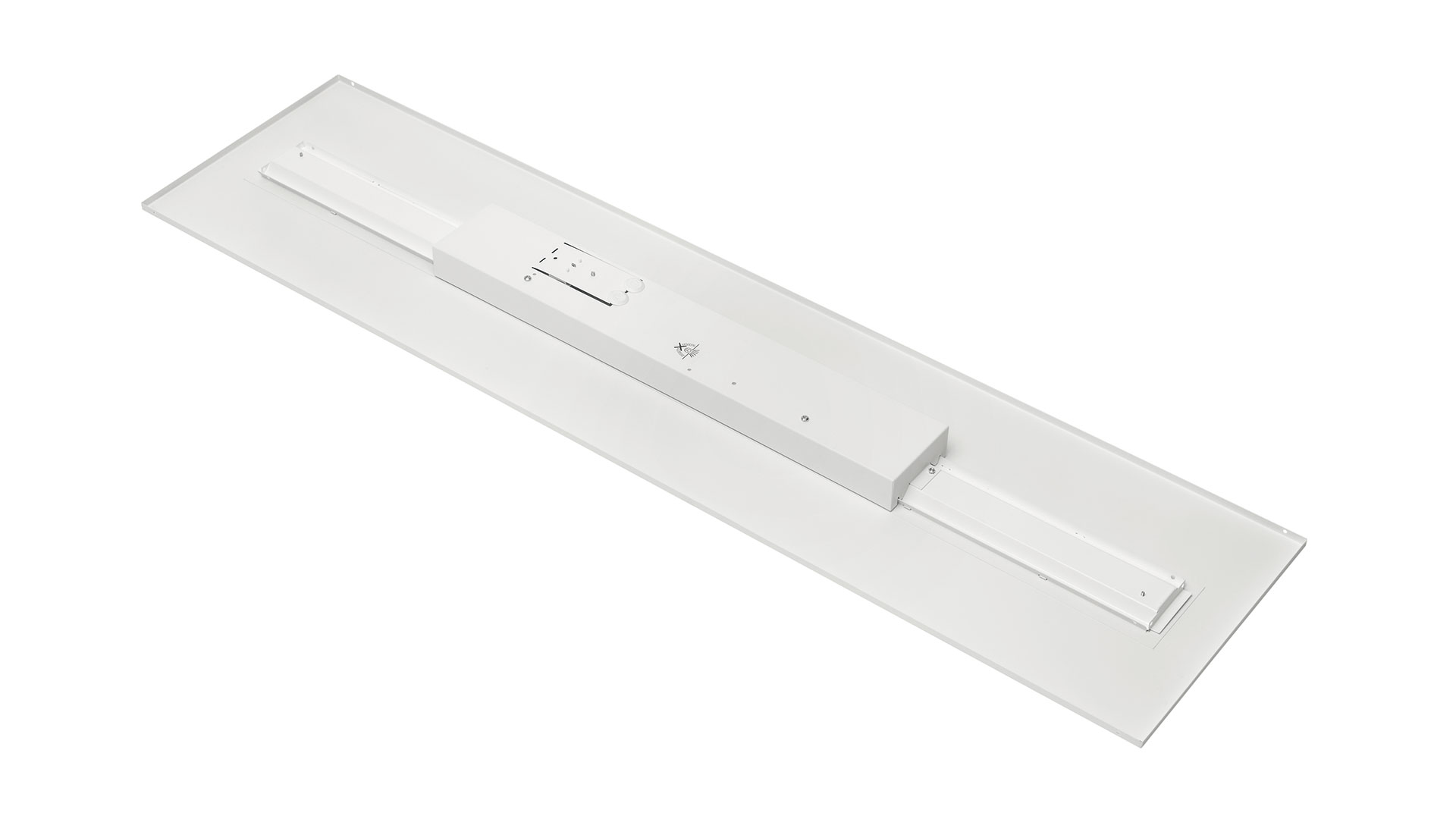

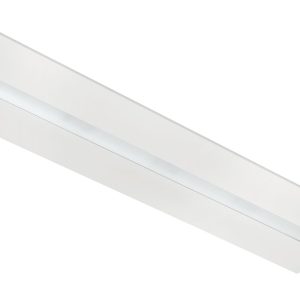

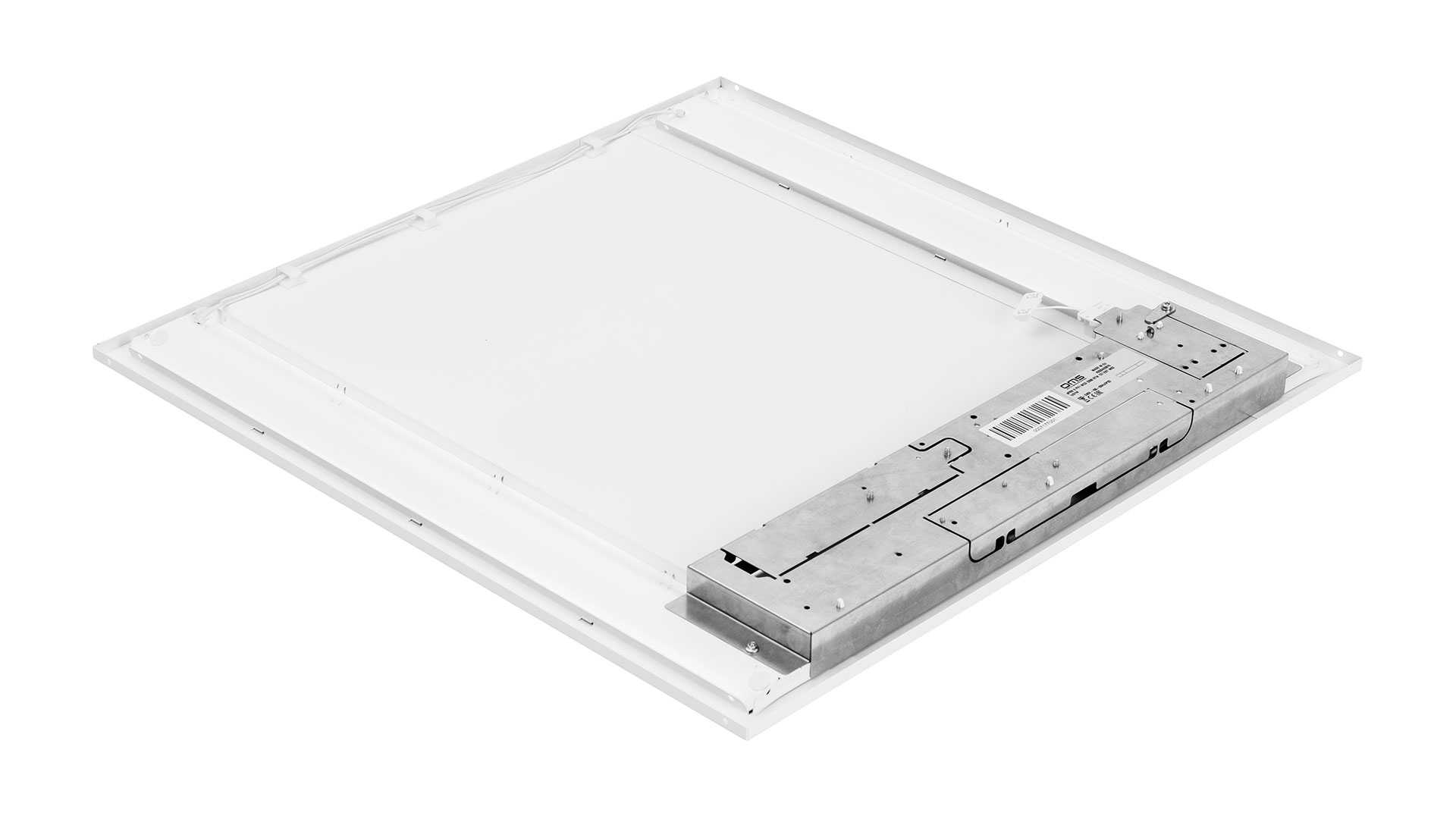

PV1, PR1, PV4

Light Source

LED

Voltage

220-240 V, 50-60 Hz

Net Lumen Output (at Ta=25°C)

, , , , , , ,

Power Consumption

, ,

System Efficacy

134-144 lm/W

CRI

CCT

,

Colour Tolerance

Light Distribution

Optical System

Beam Angle (C0-180, C90-270)

85°, 90°

Wiring

, ,

Power Factor

>0.95

Materials

Housing: sheet steel, Diffuser: PMMA

Surface Finish

Housing: white RAL 9003 (W03)

Accessories

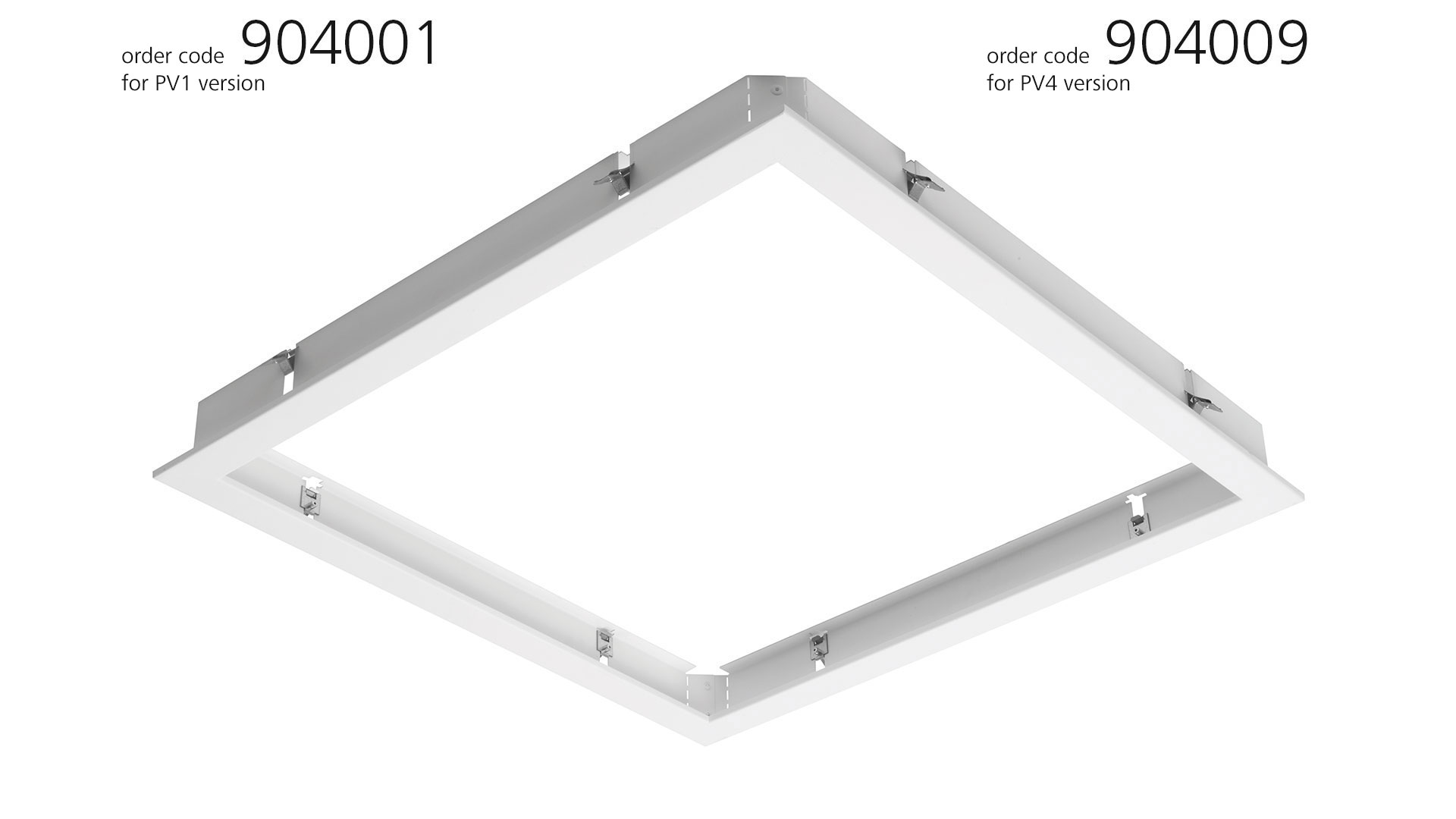

Frame for plasterboard installation

Service Lifetime (Ta 25°C)

100,000 hours/L90/B10

Ambient Operating Temp.

,

Protection Class

I

Protection Degree

,

On Request

CRI 90+

Datasheet

Download

Installation Manual

Download

CE Declaration of conformity

Download

Photometric Data

Download
