Additional information
| Mounting | |
|---|---|
| Size | M, L |
| Light Source | LED |
| Voltage | 220-240 V, 50-60 Hz |
| Net Lumen Output (at Ta=25°C) | 4750 lm, 5000 lm, 5550 lm, 5800 lm, 6300 lm, 6700 lm, 7950 lm, 8400 lm |
| Power Consumption | |
| System Efficacy | 108-128 lm/W |
| CRI | |
| CCT | |
| Colour Tolerance | |
| Light Distribution | |

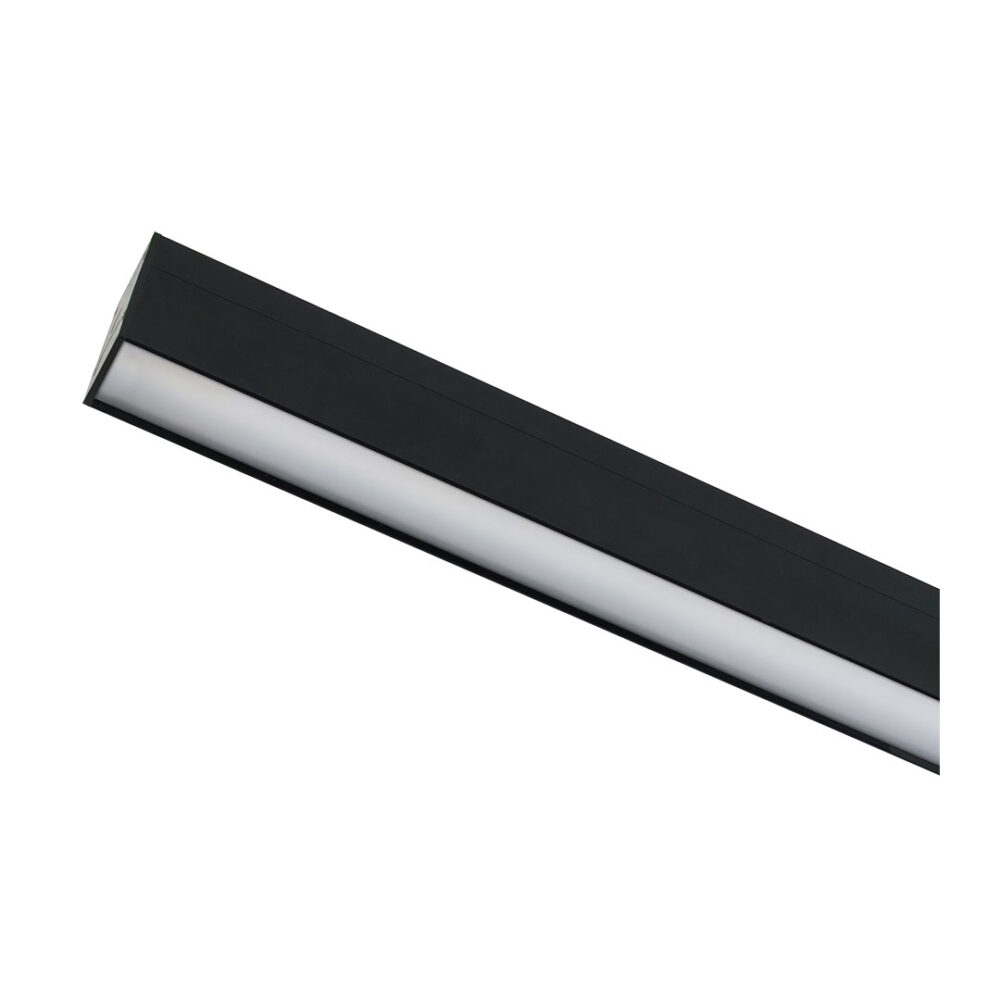

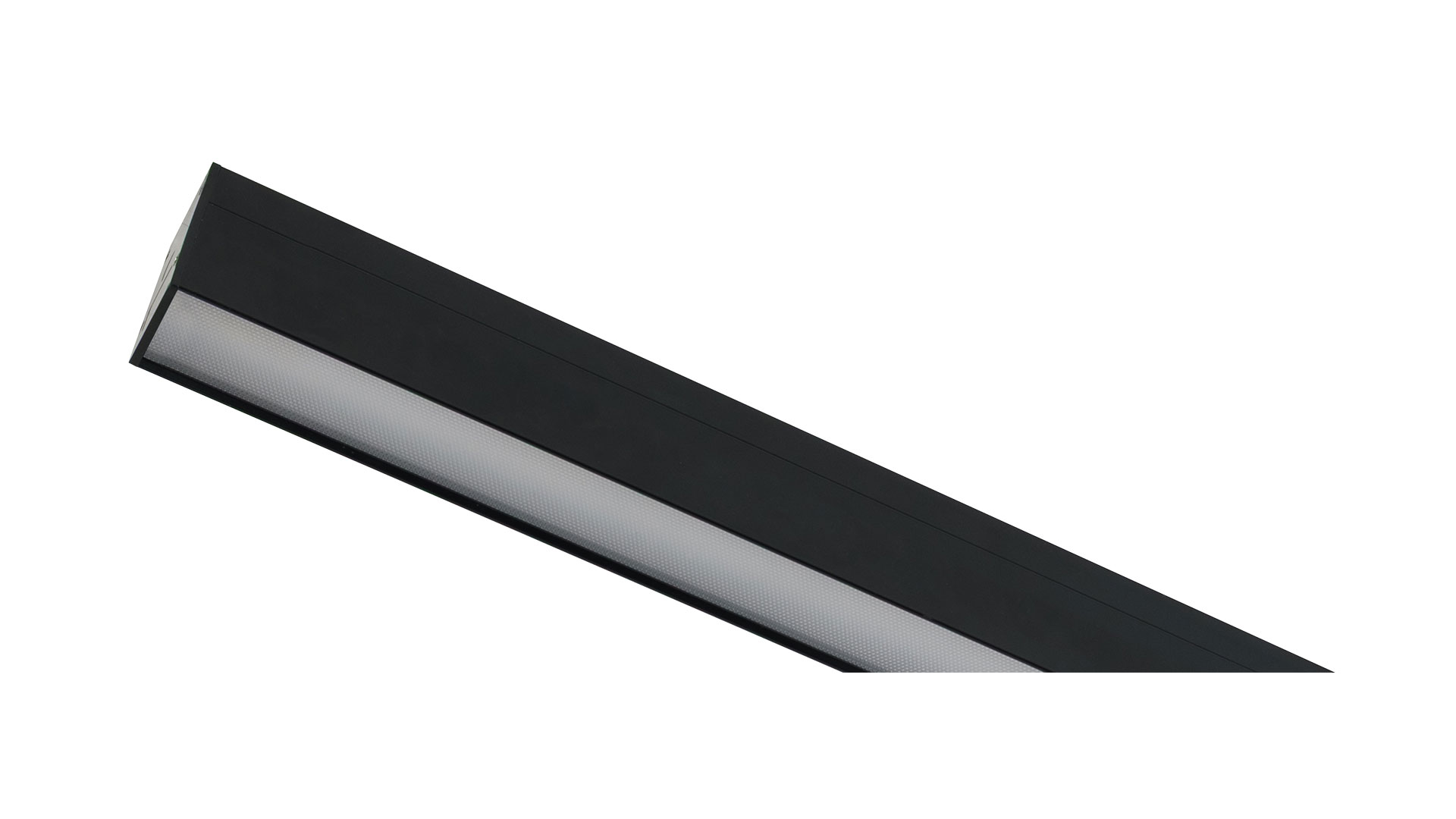

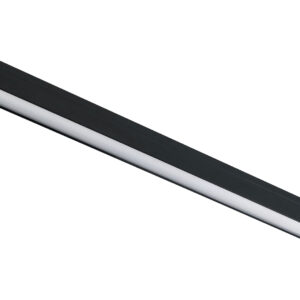

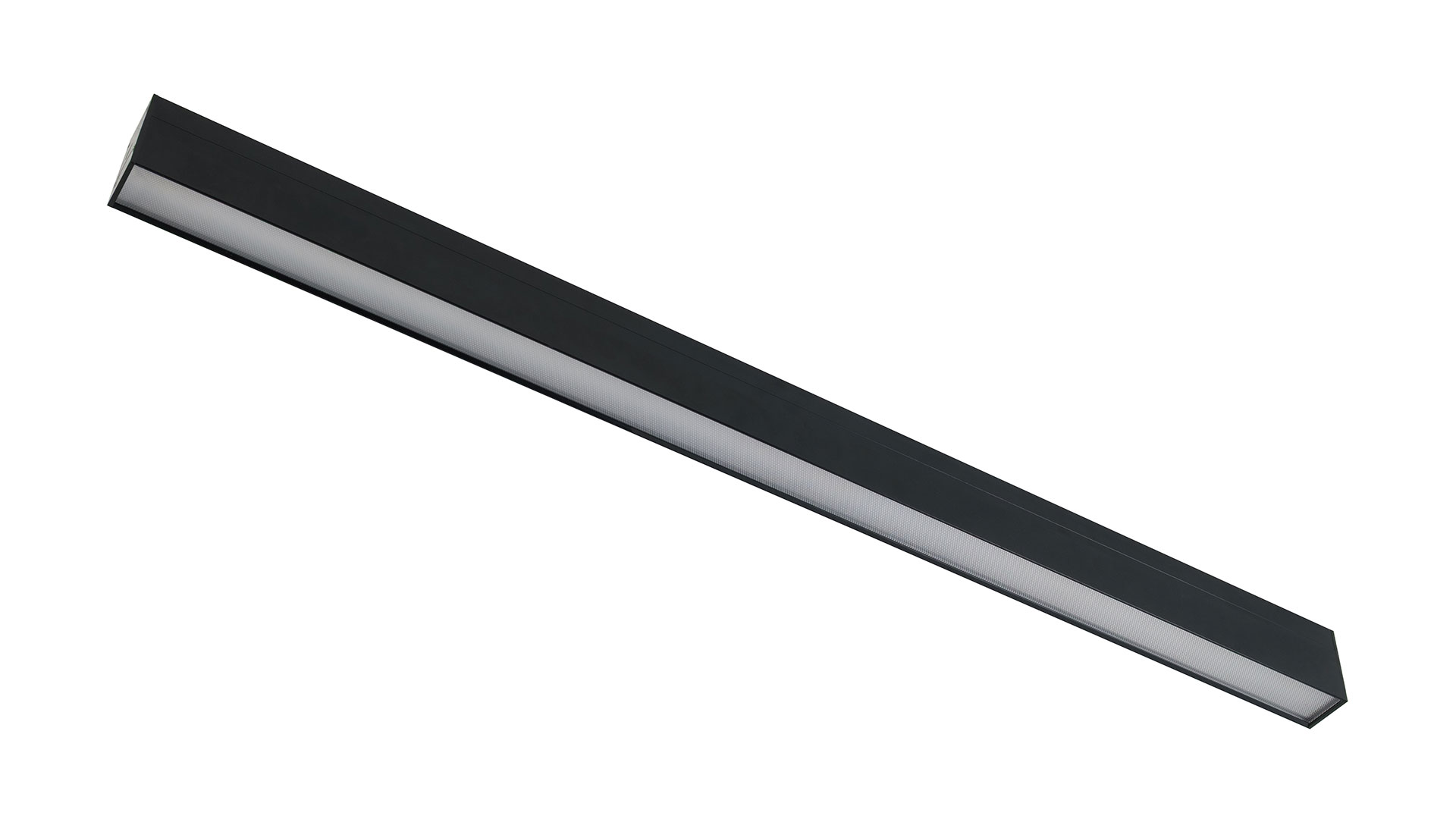

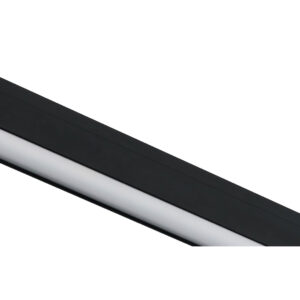

| Optical System | DIRECT: Microprismatic diffuser (MCD), DIRECT: Opal diffuser (OPD), INDIRECT: Opal diffuser |
| Beam Angle (C0-180, C90-270) | 100°(OPD), 65° (MCD) |
| Wiring | |
| Power Factor | 0.97 |
| Materials | Housing: aluminium, Diffuser: PMMA, Lenses: PMMA, Louvre: polycarbonate, End caps: PMMA |
| Accessories | Rope suspension |
| Surface Finish | Housing: black RAL 9005 (B05) |
| Service Lifetime (Ta 25°C) | 100,000 hours/L80/B10 |
| Ambient Operating Temp. | |
| Protection Class | I |
| Protection Degree | |
| On Request | Other colours, Emergency unit variant (3H) |
| Notice | The stated light output is valid for OPD. |
