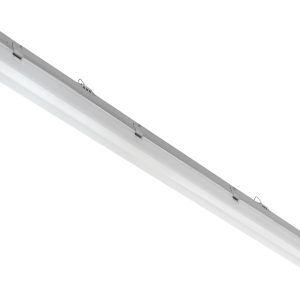

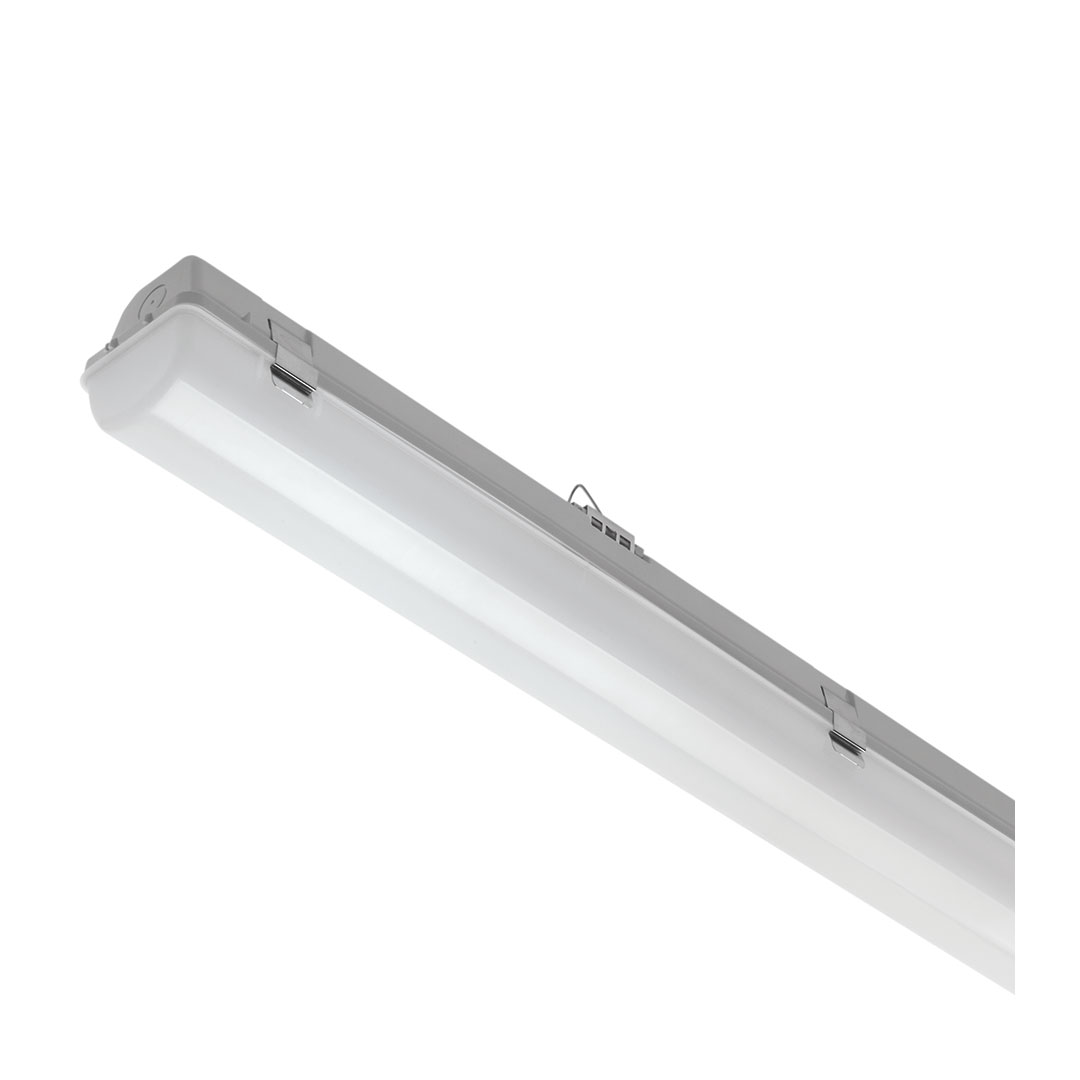

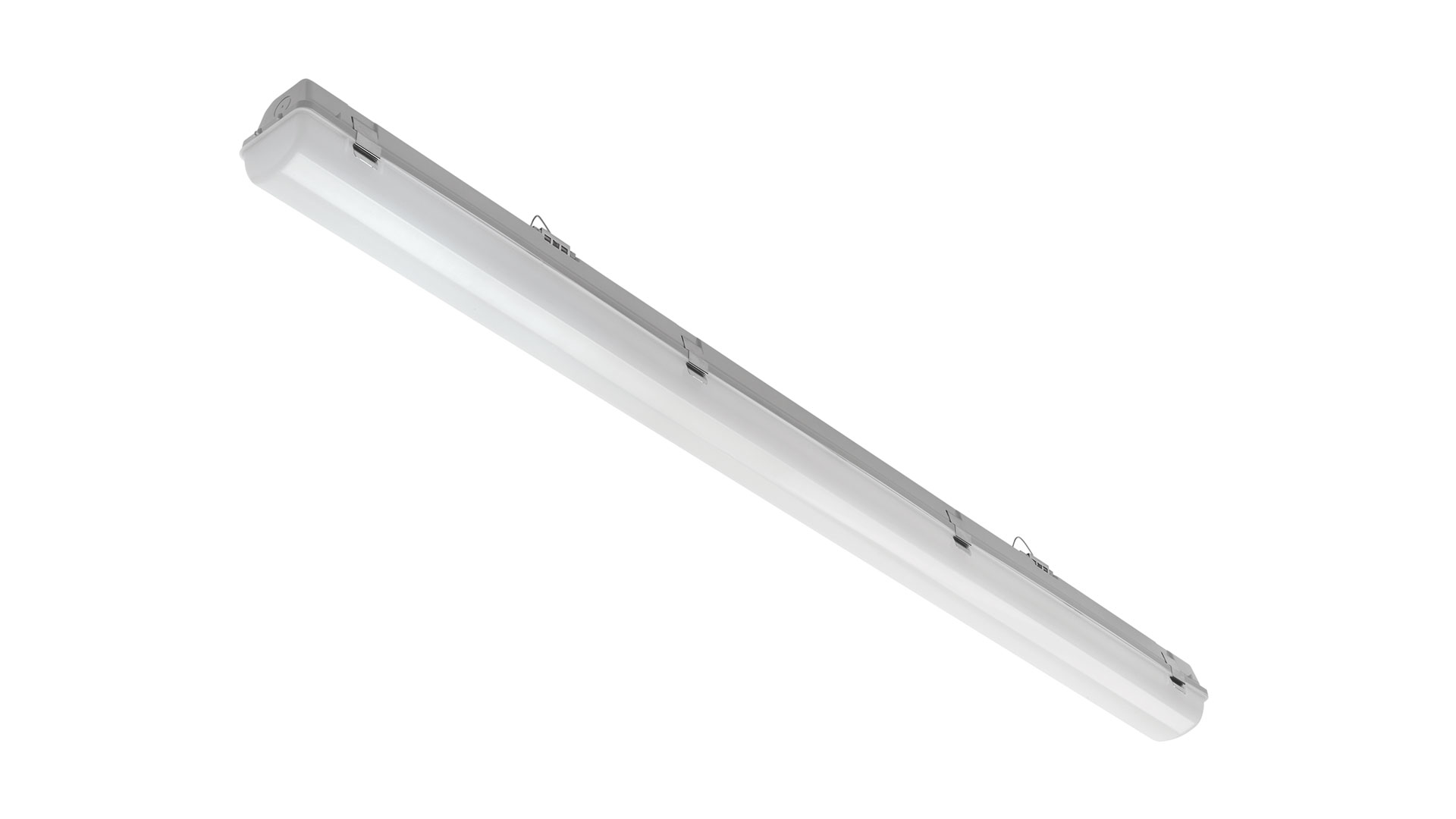

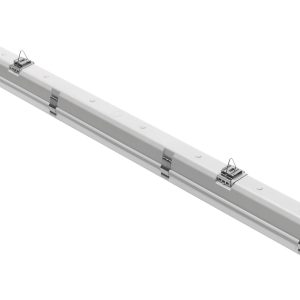

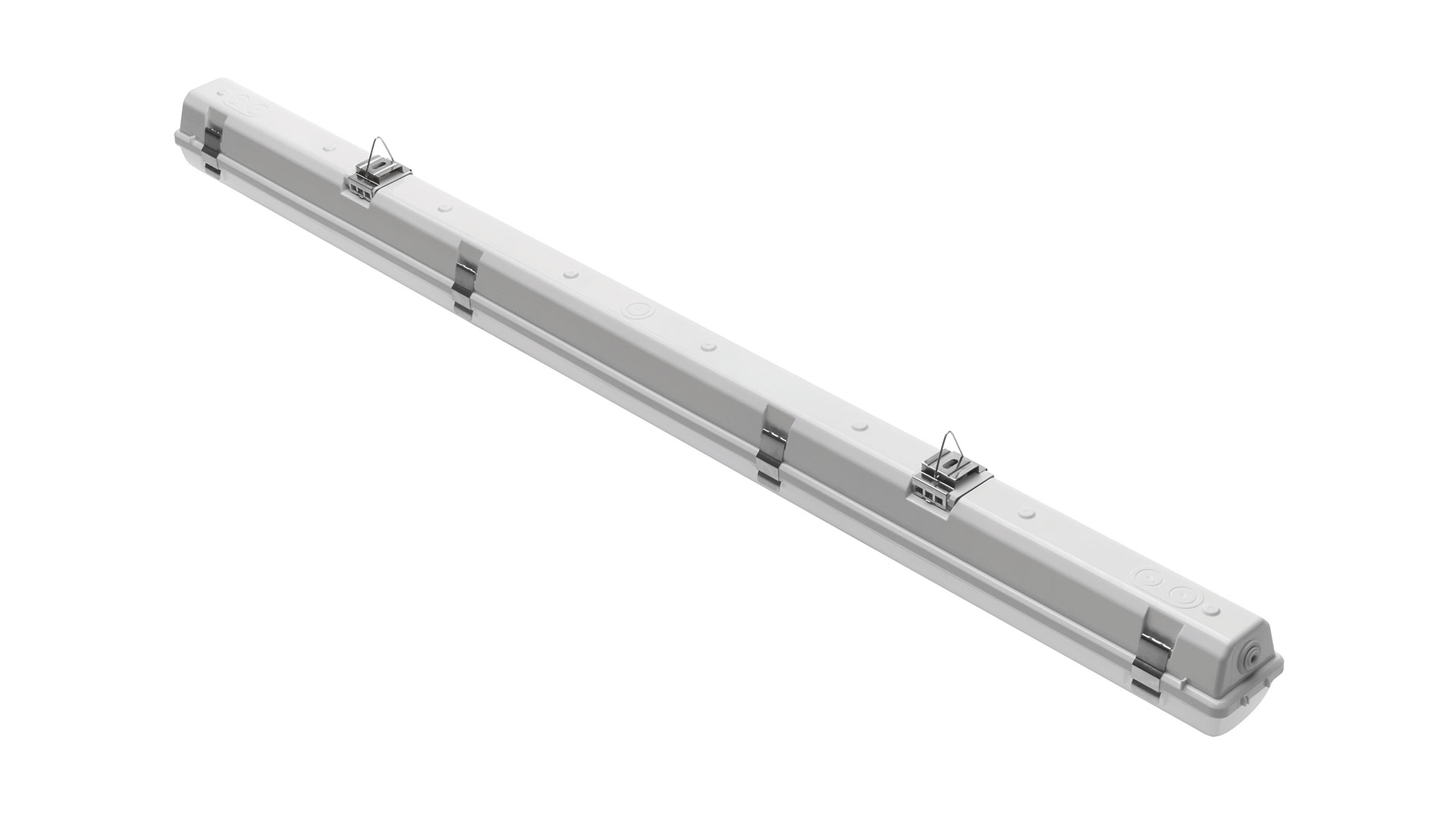

Tdo III Eco Led

Additional information

Mounting

Size

S, M, L

Light Source

LED

Voltage

220-240 V, 50-60 Hz

Net Lumen Output (at Ta=25°C)

, , , , , , , , , , , , , , , , ,

Power Consumption

, , , , , ,

System Efficacy

129-148 lm/W

CRI

CCT

,

Colour Tolerance

Light Distribution

Optical System

Beam Angle (C0-180, C90-270)

145°, 105°

Wiring

, ,

Power Factor

0.97

Materials

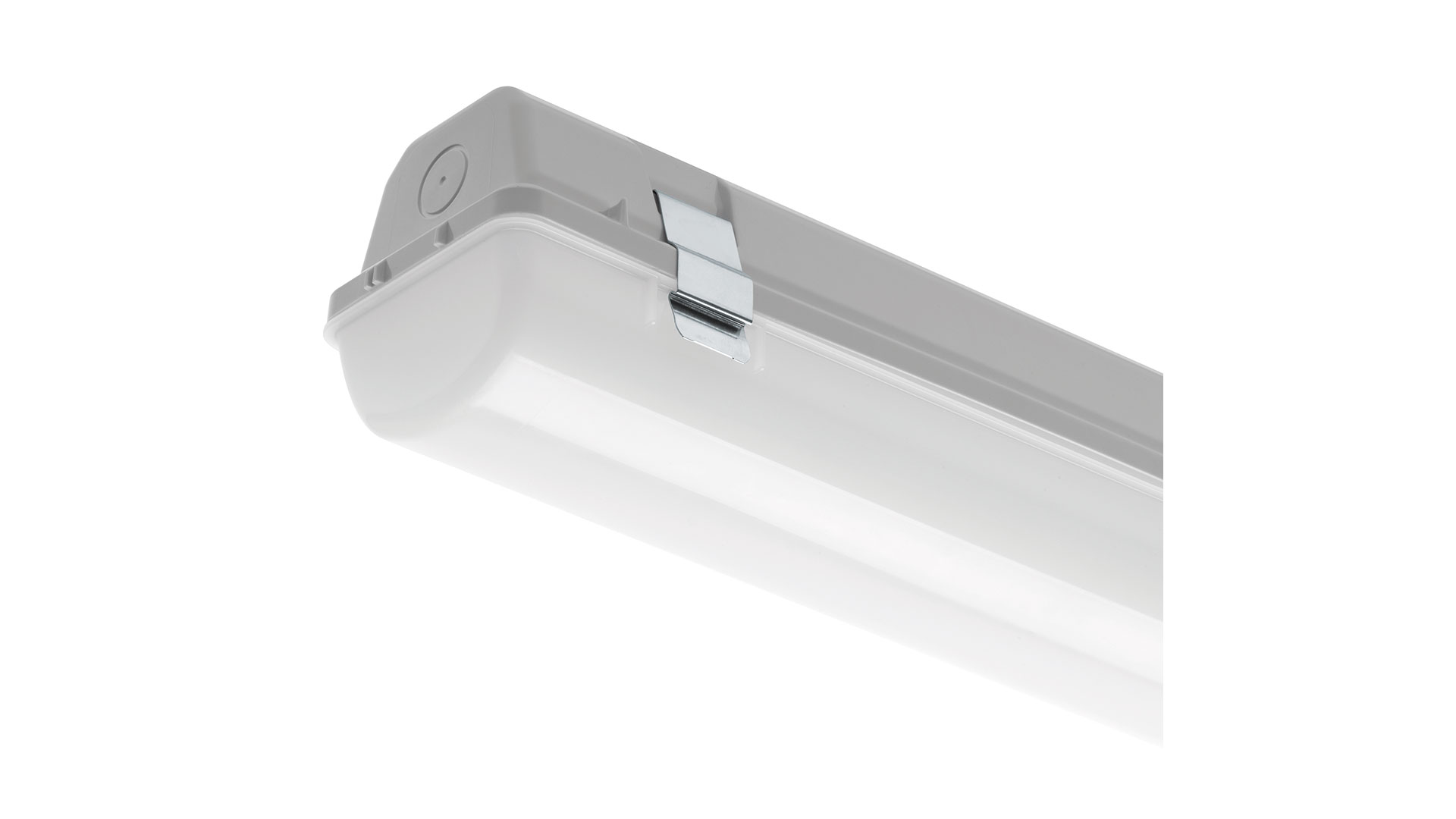

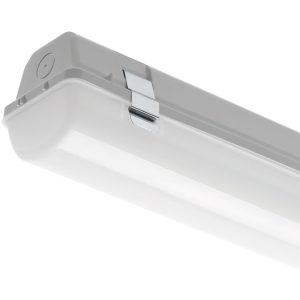

Housing: grey injected polycarbonate, Diffuser: polycarbonate, Clips: stainless steel (INOX)

Accessories

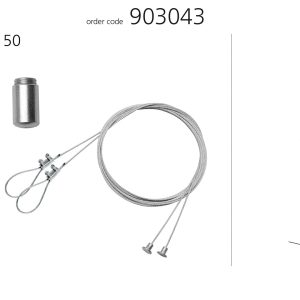

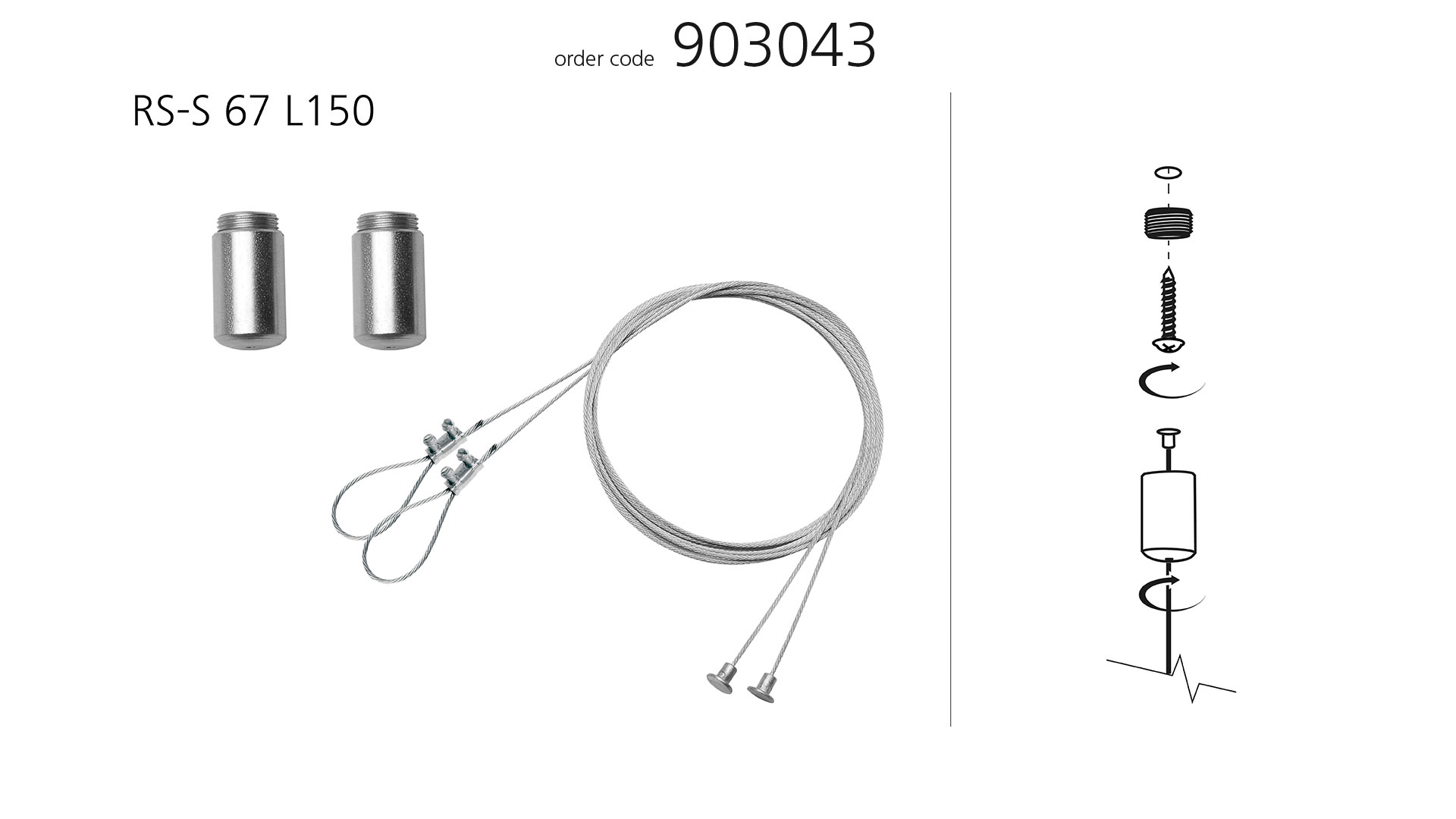

Rope suspension RS-S 67

Service Lifetime (Ta 25°C)

100,000 hours/L80/B10 (S), 50,000 hours/L90/B10 (M, L)

Ambient Operating Temp.

,

Protection Class

I

Protection Degree

,

On Request

Through wiring

Datasheet

Download

Installation Manual

Download

CE Declaration of conformity

Download

Photometric Data

Download
