Name: Prestige ONE
SKU: 5483
Price: 1.00 EUR
Availability: InStock

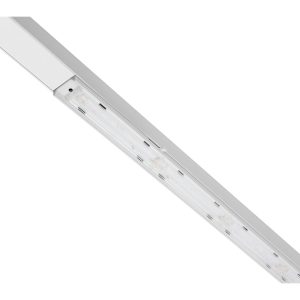

Prestige ONE

Net Lumen Output (at Ta=25°C)

Power Consumption

CCT

Optical System

Beam Angle (C0-180, C90-270)

Wiring

Clear

Additional information

Mounting	Suspended / ceiling surfaced – determined for continuous installation (MDS)
Light Source	LED
Voltage	220-240 V, 50-60 Hz
Net Lumen Output (at Ta=25°C)	2800/3450/4050/4700 lm, 2800/3450/4050/4700 lm – EM 380 lm, 2900/3600/4250/4900 lm, 2900/3600/4250/4900 lm – EM 400 lm, 3200/3950/4700/5400 lm, 3200/3950/4700/5400 lm – EM 380 lm, 3350/4150/4900/5600 lm, 3350/4150/4900/5600 lm – EM 400 lm, 3350/4150/4900/5650 lm, 3350/4150/4900/5650 lm – EM 380 lm, 3500/4350/5150/5900 lm, 3500/4350/5150/5900 lm – EM 400 lm, 4700 lm, 4900 lm, 5400 lm, 5600 lm, 5650 lm, 5900 lm, 7700 lm, 7700 lm – EM 380 lm, 8050 lm, 8050 lm – EM 400 lm, 8900 lm, 8900 lm – EM 380 lm, 9300 lm, 9300 lm – EM 400 lm
Power Consumption	22/27/32/38 W, 22/28/33/39 W, 38 W, 39 W, 60 W
System Efficacy	124-159 lm/W
CRI	80+
CCT	3000 K, 4000 K
Colour Tolerance	3 SDCM
Light Distribution	Direct
Optical System	Opal diffuser (OPD), Medium lenses (LME), Medium wide lenses (LMW)
Beam Angle (C0-180, C90-270)	140°, 100°, 52°, 95°, 90°, 110°
Wiring	FIX (ECG), FIX MANUALLY SETTABLE (SCG), DALI (EDA), Emergency unit variant (3H, ECG), Emergency unit variant (3H, SCG)
Power Factor	0.94
Materials	Housing: sheet steel, Diffuser: PMMA, Lenses: polycarbonate
Surface Finish	Housing: white RAL 9003 (W03)
Accessories	Components for system PRESTIGE
Service Lifetime (Ta 25°C)	100,000 hours/L80/B10
Ambient Operating Temp.	From -25 °C to +35 °C, From +5 °C with EM unit
Protection Class	I
Protection Degree	IP20
