Name: Prestige LS II Medium
SKU: 5439
Price: 1.00 EUR
Availability: InStock

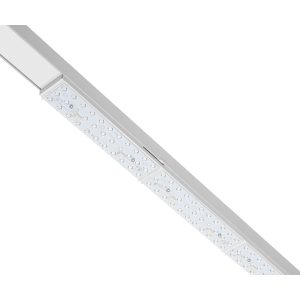

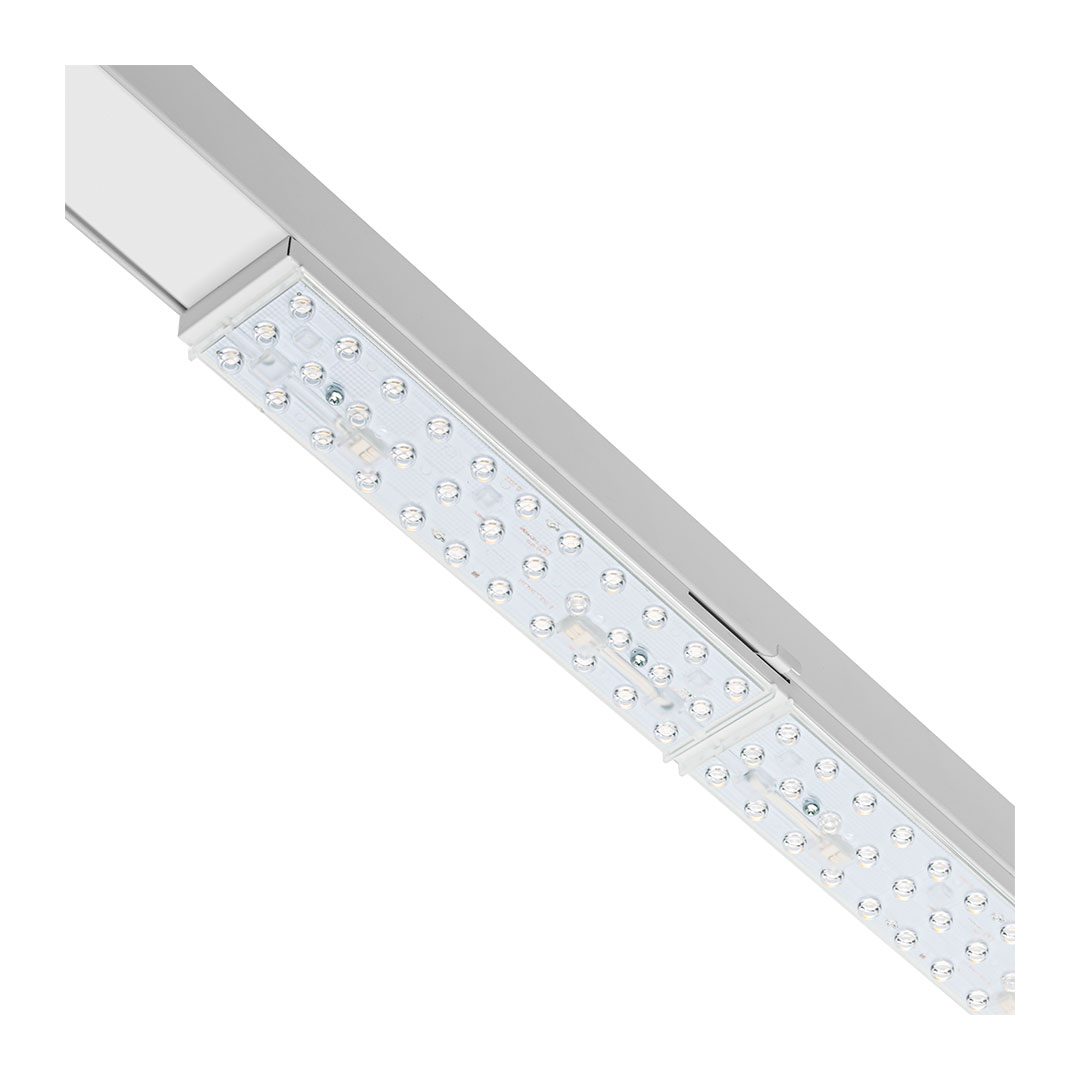

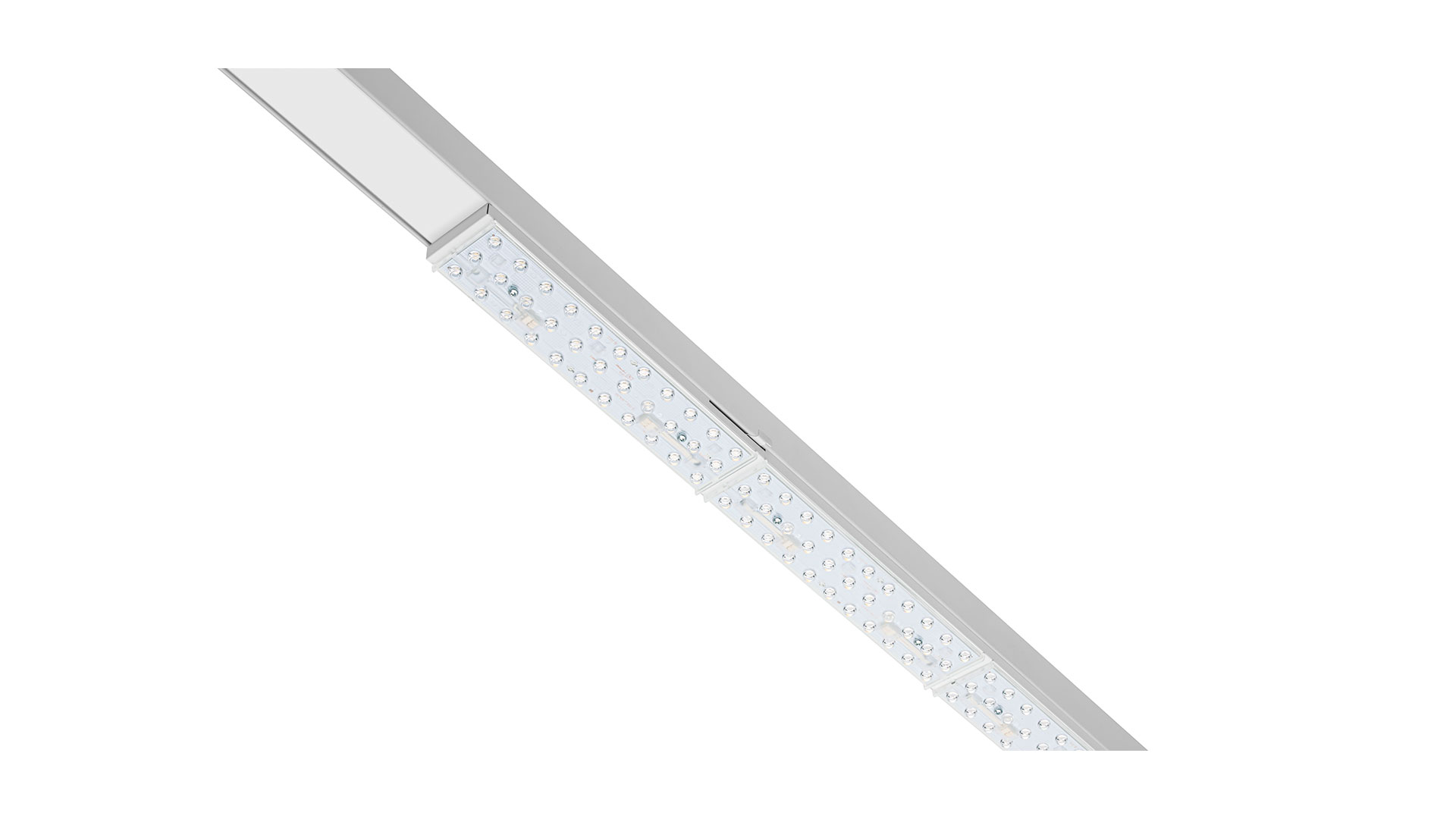

Prestige LS II Medium

Net Lumen Output (at Ta=25°C)

Power Consumption

CCT

Wiring

Clear

Additional information

Mounting	Suspended / ceiling surfaced – determined for continuous installation (MDS)
Light Source	LED
Voltage	220-240 V, 50-60 Hz
Net Lumen Output (at Ta=25°C)	5850 lm, 5850 lm / EM 410 lm, 6100 lm, 6100 lm / EM 430 lm, 7900 lm, 7900 lm / EM 410 lm, 8250 lm, 8250 lm / EM 430 lm, 9950 lm, 9950 lm / EM 410 lm, 12,650 lm, 12,650 lm / EM 410 lm, 13,200 lm, 13,200 lm / EM 430 lm, 16,100 lm, 16,100 lm / EM 430 lm, 16,700 lm, 16,700 lm / EM 410 lm, 17,400 lm, 17,400 lm / EM 430 lm, 15,400 lm, 15,400 lm / EM 410 lm, 10,400 lm, 10,400 lm / EM 430 lm
Power Consumption	42 W, 58 W, 76 W, 91 W, 114 W
System Efficacy	131-146 lm/W
CRI	80+
CCT	3000 K, 4000 K
Colour Tolerance	3 SDCM
Light Distribution	Direct

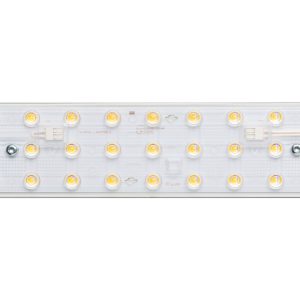

Optical System	Medium lenses (LME)
Beam Angle (C0-180, C90-270)	45°, 45°, 63°
Wiring	FIX (ECG), DALI (EDA), Emergency unit variant (3H, ECG)
Power Factor	>0.95
Materials	Housing: sheet steel, Lenses: PMMA
Surface Finish	Housing: white RAL 9003 (W03)
Accessories	Components for system PRESTIGE
Service Lifetime (Ta 25°C)	100,000 hours/L80/B10 (91/114W), 100,000 hours/L90/B50 (42/58/76W)
Ambient Operating Temp.	From -20 °C to +35 °C, From +5 °C with EM unit
Protection Class	I
Protection Degree	IP20
