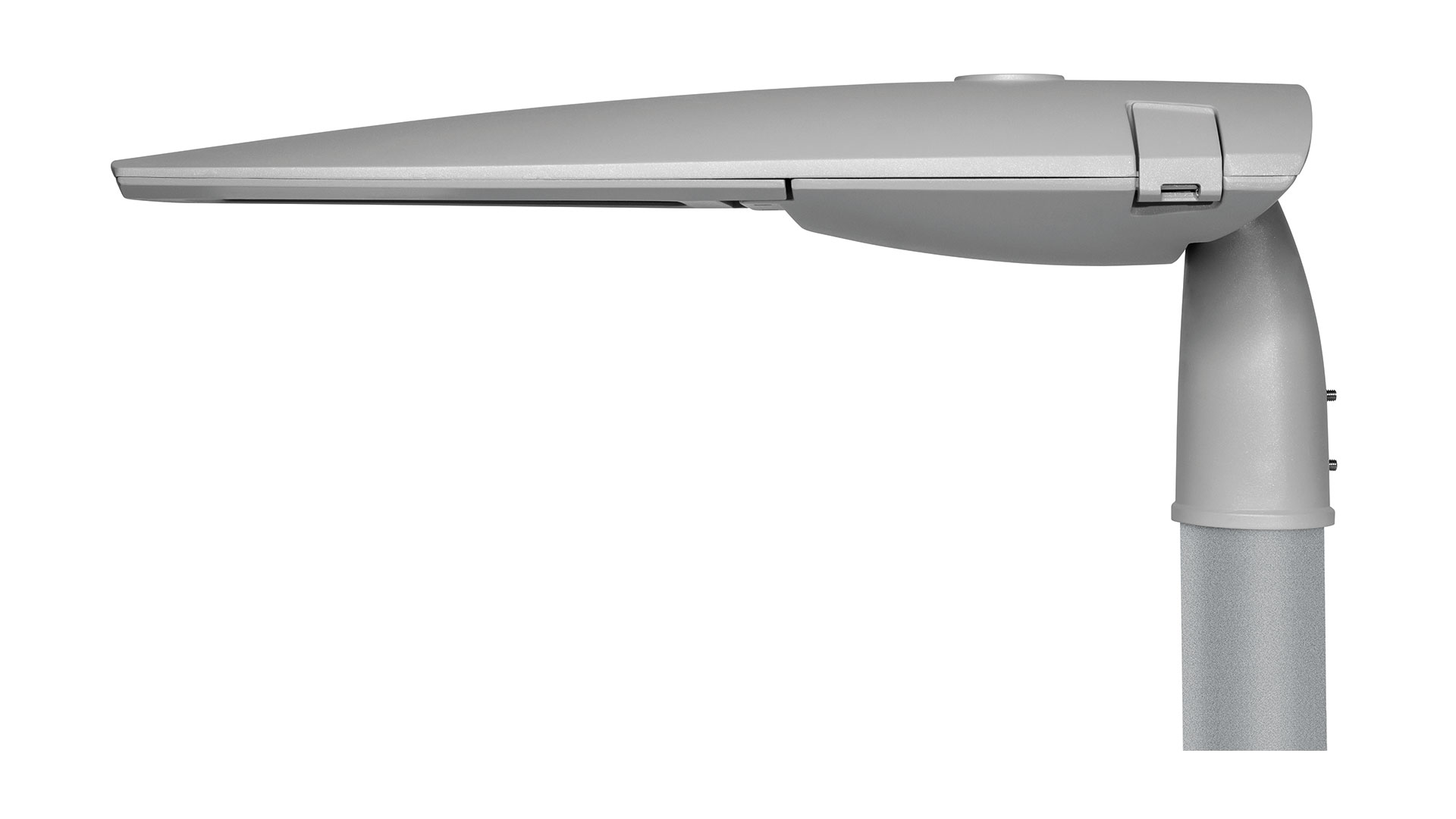

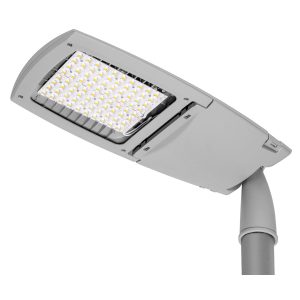

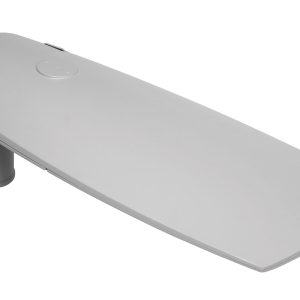

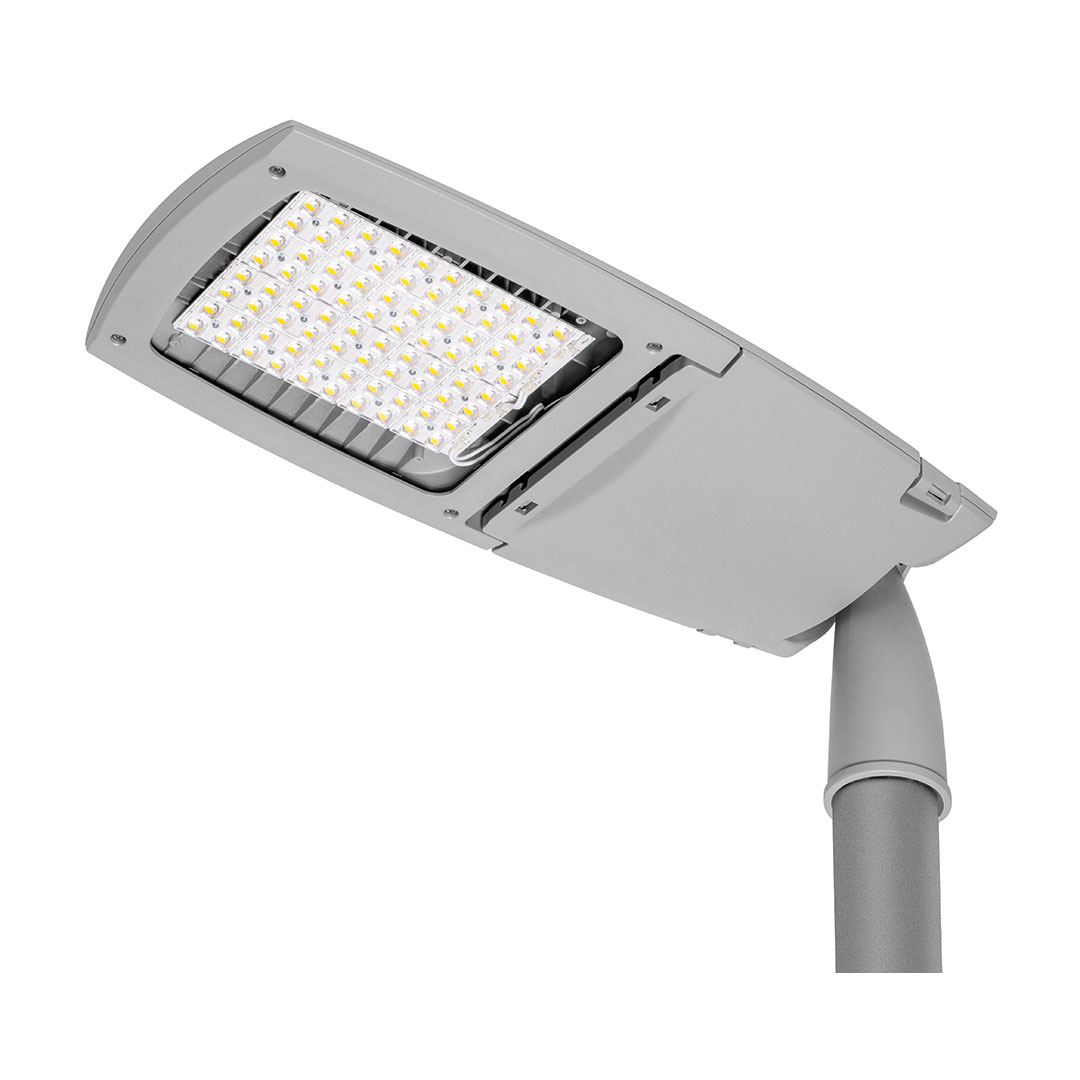

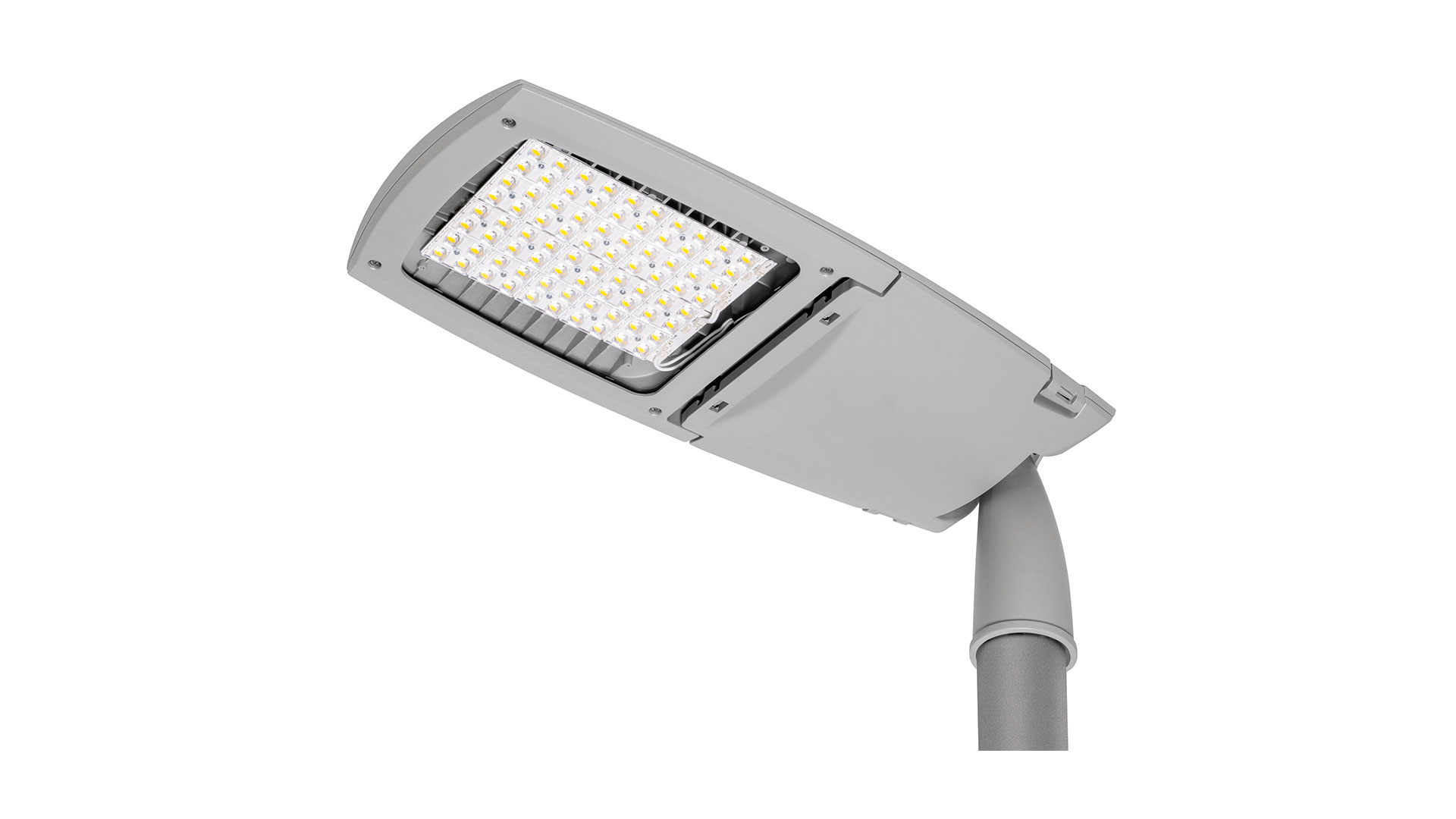

Torcus II L

SKU: N/A Categories:, Tag:

Additional information

Mounting

Light Source

LED

Voltage

220-240 V, 50-60 Hz

Net Lumen Output (at Ta=25°C)

, , , , , , , , , , , , , , ,

Power Consumption Initial

115 W, 124 W, 130 W, 140 W, 149 W, 156 W, 167 W, 176 W

Power Consumption End

125 W, 135 W, 141 W, 152 W, 162 W, 169 W, 181 W, 191 W

System Efficacy

152-168 lm/W

CRI

CCT

,

Colour Tolerance

Windage Area Side/Top

0.185/0.254 m2

Light Distribution

Optical System

Wiring

, , ,

Power Factor

0.98

Materials

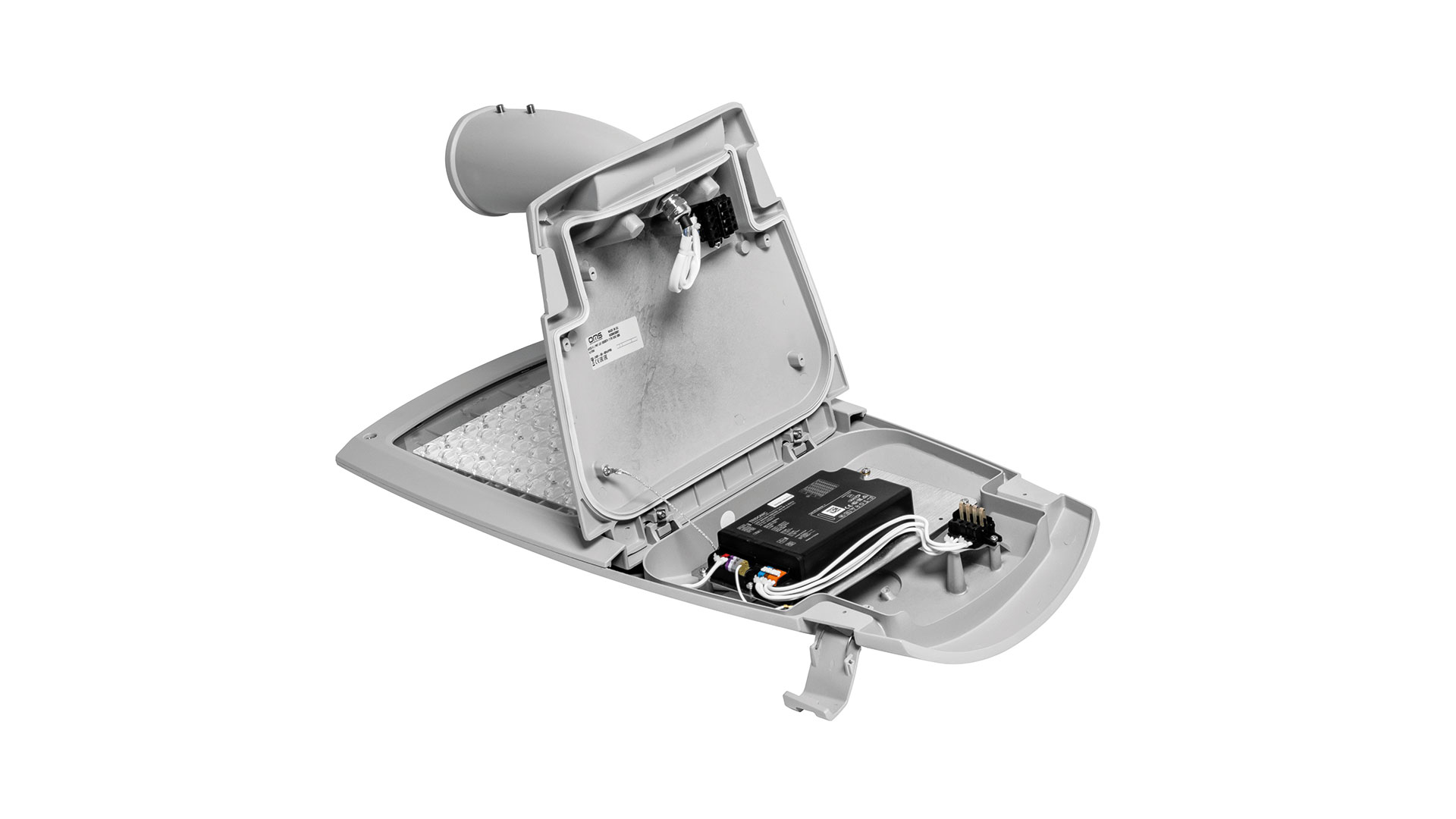

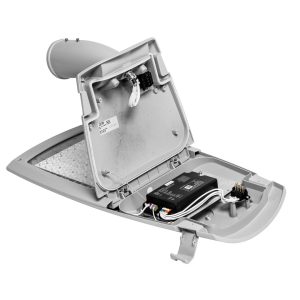

Housing: die cast aluminium, Cover: transparent hardened glass, Tiltable spigot (Ø76) and adapter (Ø60): die-cast aluminium

Surface Finish

Housing: grey RAL 9006 (G06)

Service Lifetime (Ta 25°C)

100,000 hours/L100/B10

Ambient Operating Temp.

Protection Class

II

Protection Degree

,

On Request

Lenses L02, L03, L04, L05, L06, L08, L09, L10, L11, L12, L18, Protection class I
