Additional information
Mounting | |
---|---|
Light Source | LED |
Voltage | 220-240 V, 50-60 Hz |
Net Lumen Output (at Ta=25°C) | 1650 lm, 1650 lm – EM 300 lm, 1750 lm, 1750 lm – EM 300 lm, 2150 lm, 2150 lm – EM 300 lm, 2250 lm, 2250 lm – EM 300 lm |
Power Consumption | |
System Efficacy | 110-118 lm/W |
CRI | |
CCT | |
Colour Tolerance | |
Light Distribution | |

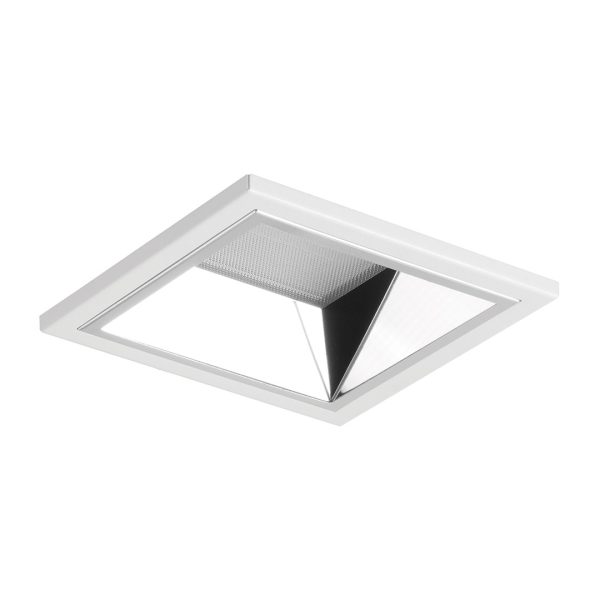

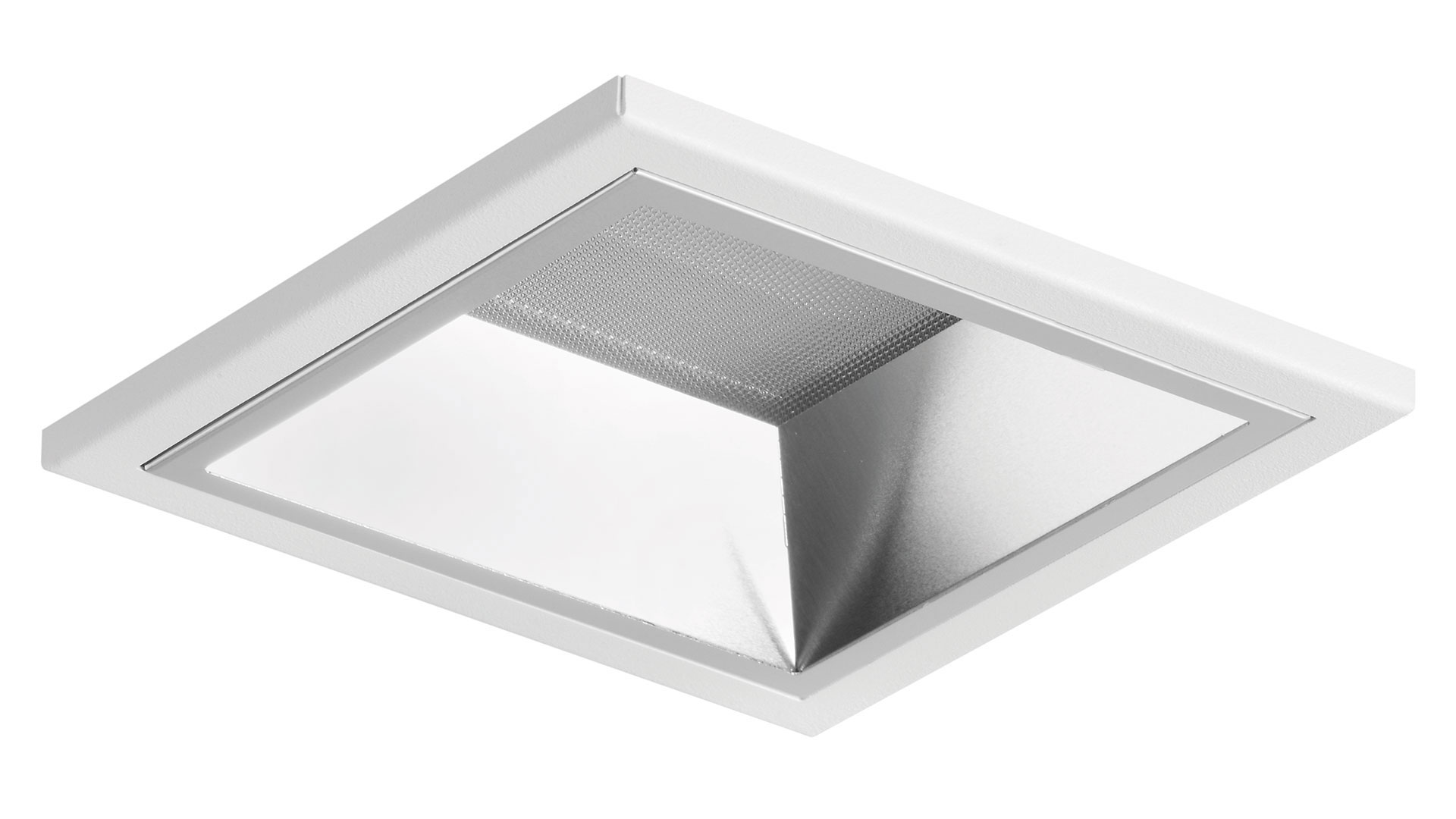

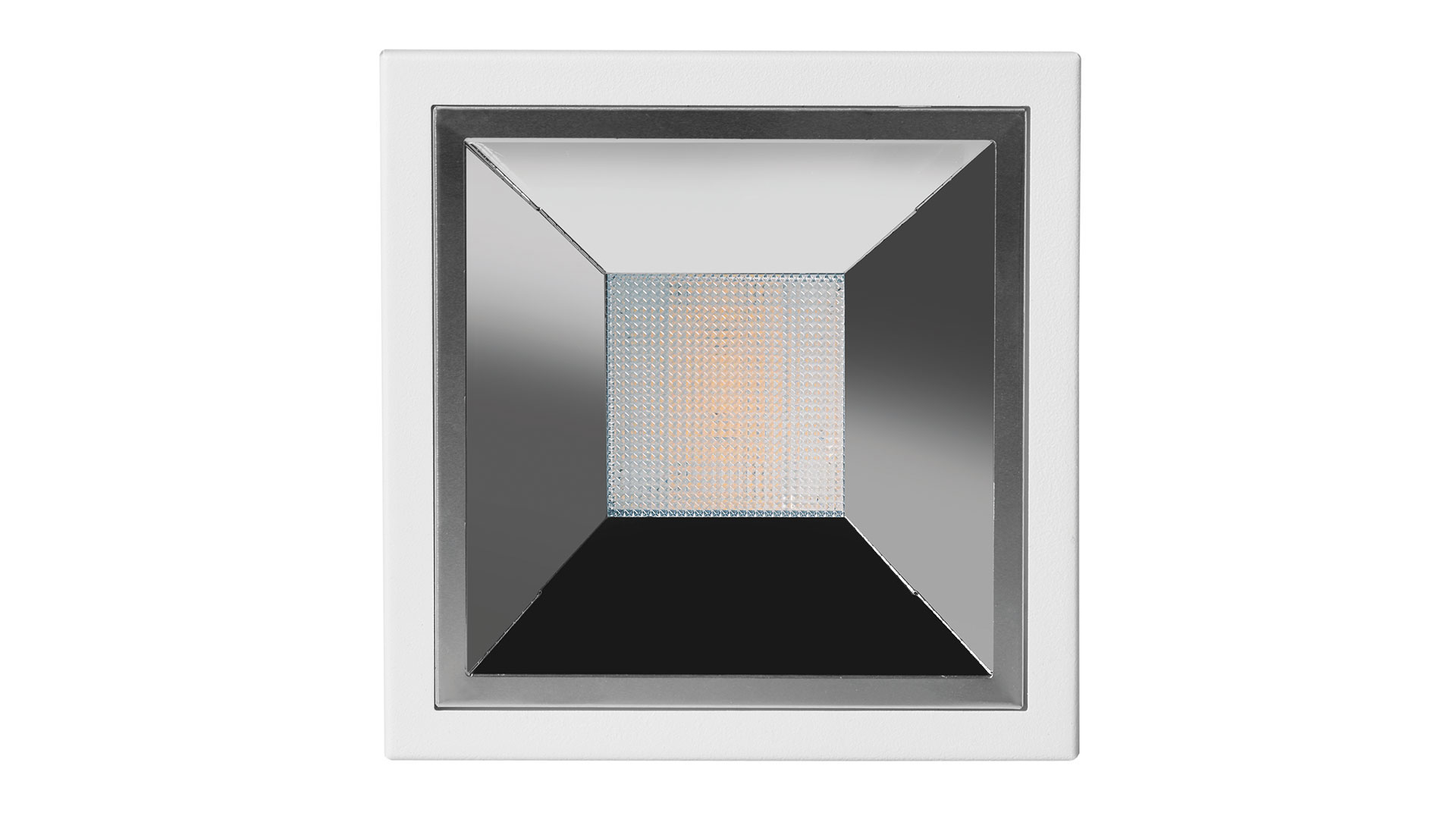

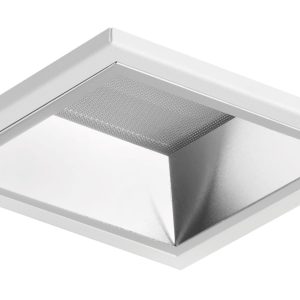

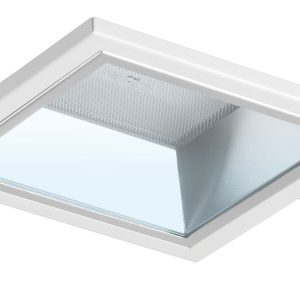

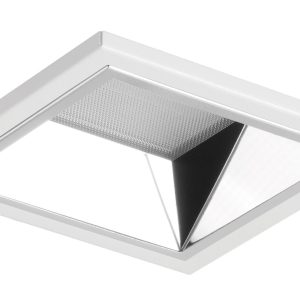

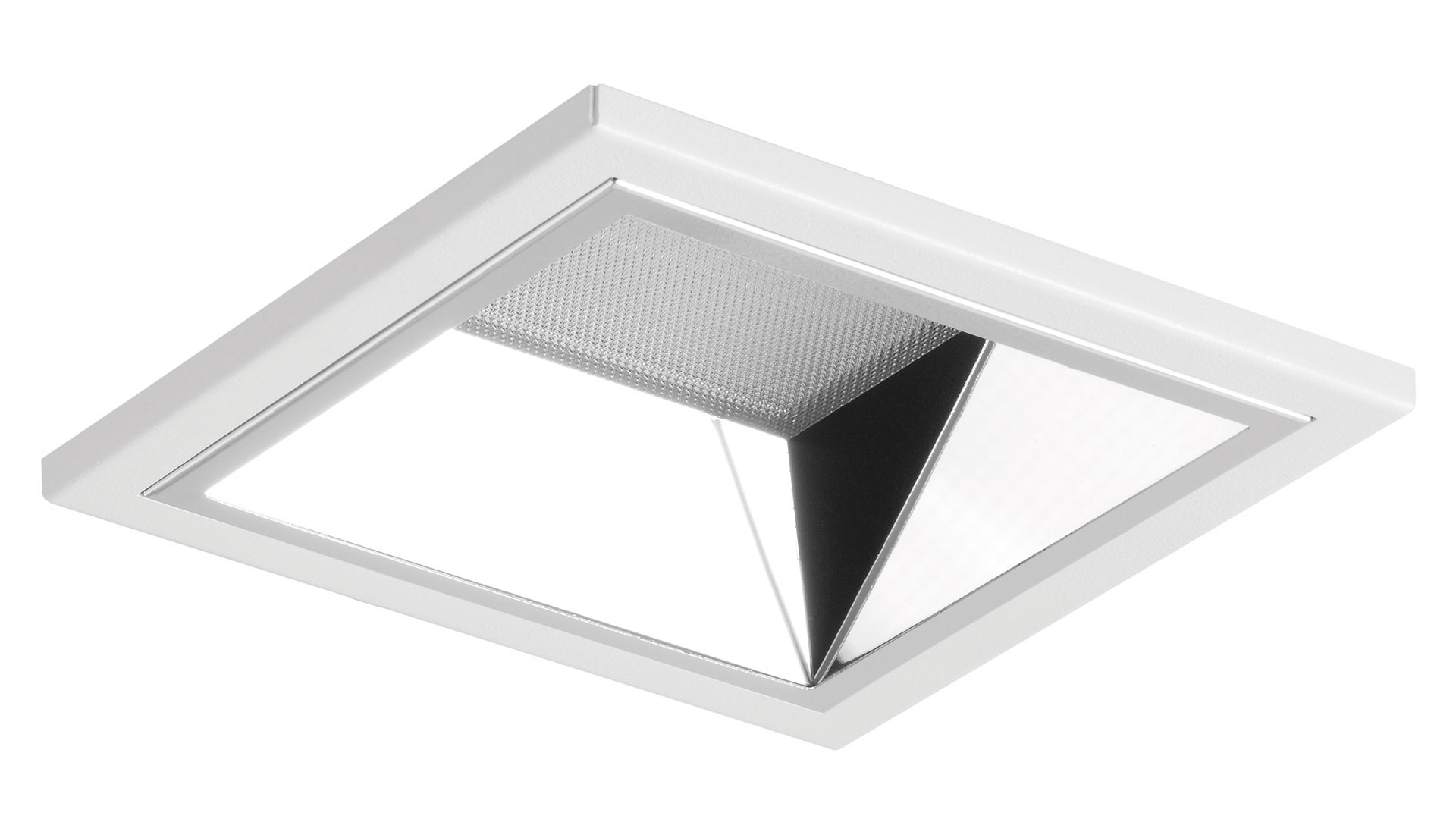

Optical System | Polished reflector (PRE), Polished reflector + transparent cover (PRT), Matt reflector (MRE), Matt reflector + transparent cover (MRT) |
Beam Angle (C0-180, C90-270) | 70° |
Wiring | |
Power Factor | 0.9 |
Materials | Housing: sheet steel, Diffuser: PMMA, Reflector: anodised aluminium, Cover: PMMA, Trim: sheet steel |
Surface Finish | Trim: white RAL 9003 (W03) |
Service Lifetime (Ta 25°C) | 100,000 hours/L90/B20 |
Ambient Operating Temp. | |
Protection Class | I, II |
Protection Degree | |
On Request | CRI 90+, Opal cover |
